Machining

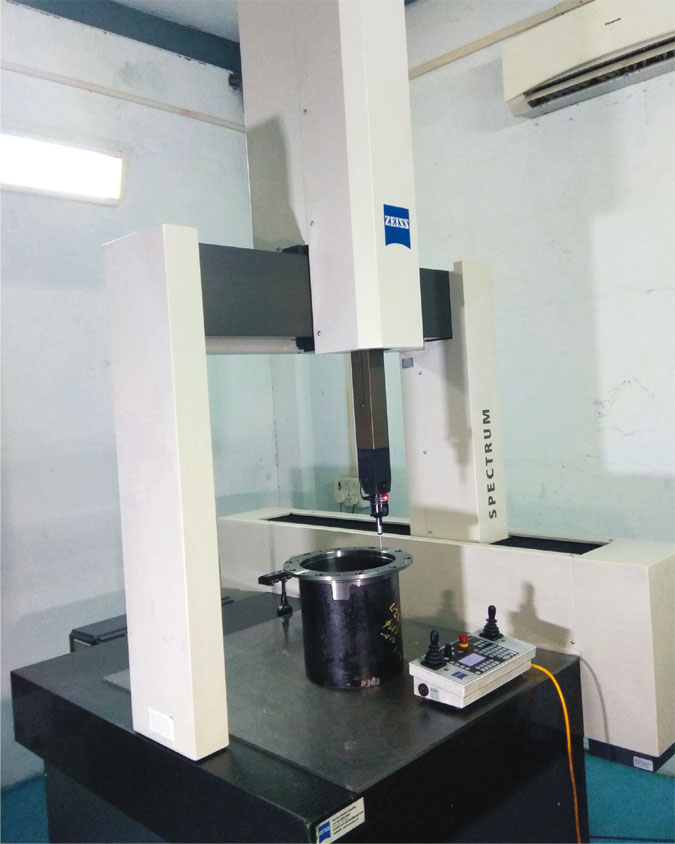

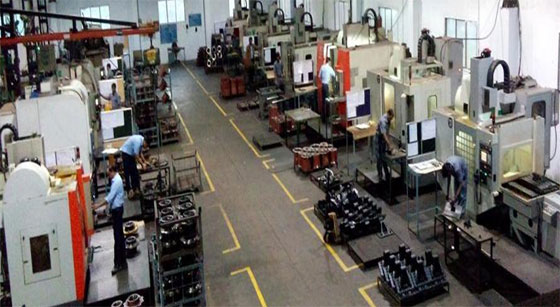

Porwal Auto has modern in house machining facility with conventional, CNC, VMC Machining Centres, Vertical Turret Lathes ( VTL ) for fully Machining and supplying the casting, Machined casting are checked with most modern CMM of CARL ZEISS Make, For Dimensional Accuracy.

Sr. No. Description of Machine / Equipment Make / Model Capacity / Specification No. of Machine

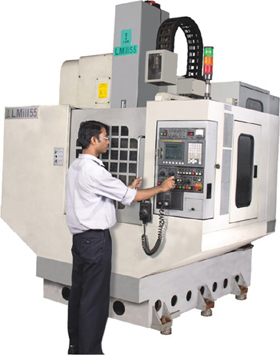

1 Vertical Machining Center LMW & BFW X - 575, Y-410, Z – 500 with Fanuc Oi Mate MC 8
2 Vertical Machining Center LMW & BFW X - 675, Y-500, Z - 600 with Fanuc Oi - MC 8
3 Vertical Machining Center BFW X - 1200, Y-650, Z - 700 with Fanuc Oi - MC 4

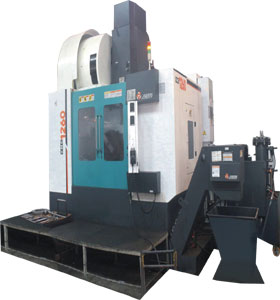

4 Vertical Machining Center Jyoti – Model 260 -P X - 1220, Y- 600, Z-610 1
5 Horizontal Machining Centre Doosan / Makino/Fritz Werner Y - 900, 800, 720, 630, 550
Z - 900, 800, 750, 635, 550		 8
6 CNC Turning LMW / RIGI - 25 Swing over Carriage - 460 mm, Chuck Dia Max. - 315mm, Max. turning Length - 700 mm, Spindle Nose - A2-8, Spindle Power - 18.5/15kW, Cross Travel X - Axis - 260 mm, Longitudinal Travel Z Axis - 760m CNC System - Fanuc Oi - TC 12
7 Vertical Turret Lathe VTL ACE - VTL 40 500 mm Chuck with Faunc Oi-TD 4
8 Robo Drill Fanuc X - 410, Y - 310, Z - 330 1
